Sewing Machine Layout for Polo Shirt making Garments Factory.
Sewing Machine Layout Suggestion for Bangladesh Garment Manufacturers.
When we wear a polo shirt we look smart. This is a good
fashionable dress, easy to wear, and stylish.
We buy polo shirts from the local market. Sometimes you can buy
export quality polo shirts nearby export-oriented readymade garments factory market.
The product could be original or sometimes it could be shipment canceled.
I got
an export quality polo shirt from my aunt. She purchased it when she traveled to America
last time. The quality, color, fabric, outlook – from all sides it was extraordinary.
Now I am working under a private company and our company is a supplier of the sewing machines, spare parts in the readymade garments industry.
Whatever today I am going to explain the sewing machine layout
for the making of the polo shirt in compliance export-oriented garments factory.
A lot of export-oriented knit factories I have visited and
sold sewing machines in the last two and a half years. I saw and I know the standard
sewing machine layout for a polo shirt in the readymade export-oriented garments
industry.
Now I sell all auto trimming function sewing machines. An auto
sewing machine has auto thread trimming function, auto foot lifting, auto back
latching, auto thread wiping.
These sewing machines have built-in servo motor so only when
you start sewing, electricity consumption will you incur. Manual sewing machine runs
by clutch motor, so whatever stitching doing or paused electricity consumption
going on.
An auto sewing machine helps you to work without a helper. So it
saves your money and time.
Hot Searches.
1. Buy Industrial Auto Sewing Machine.
2. Auxiliary Machine Ready Stock available for sale.
3. Sewing Machine Layout for your garments factory.
4. Denim Bottom Automation.
5. Shirt Sewing Machine Automation.
Sewing Machine Layout for Polo Shirt.
The standard layout for one line polo shirt needs 34 sets of auto sewing
machines. This setup will give you 140 pieces of polo shirt per hour.
Ten working hours you could get a standard output of 1400
pieces polo shirt a day when 10 hours production is running.
For a better understand I am going to explain the layout
with the help of a table.
Bangladesh Garment Manufacturer Factories will be benefitted maximum times if they use the following sewing machine layout.
Polo Shirt Sewing Machine Layout |
||
Serial number
|
Machine Name
|
Quantity
|
1
|
Plain Machine – Auto.
|
20
|
2
|
Vertical Trimmer / Edge Cutter / Rowedge Cutter Plain Machine Auto.
|
1
|
3
|
Button Hole Machine Auto.
|
1
|
4
|
Button Stitch Machine Auto.
|
1
|
5
|
Bartack Machine Auto.
|
1
|
6
|
Cylinder Bed Flatlock with Rowedge Cutter Machine Auto.
|
1
|
7
|
Flatbed Flat Lock with Piping Auto.
|
1
|
8
|
Four Thread Overlock Auto.
|
8
|
Total=
|
34
|
|
Plain Machine – Most of
the used plain machine practically I saw an oil tank pain machine. In oil tank
dust goes into the oil tank and mixed easily. Oil wasted early.
The semi-dry head machine is sealed with an oil tank. Only 250ml
oil is containing by the oil tank. Dust mixed up chance is very low here. Oil wastage
is also low here.
Oil spot increases the rejection of garment for knit. The Semi-dry
head plain machine gives no oil spot so no rejection.
Vertical trimmer plain machine – another name is edge cutter
– this machine is commonly used for collar making process.
Hot Searches.
1. Buy Industrial Auto Sewing Machine.
2. Auxiliary Machine Ready Stock available for sale.
3. Sewing Machine Layout for your garments factory.
4. Denim Bottom Automation.
5. Shirt Sewing Machine Automation.
Button Hole Machine – this machine makes the hole on a polo shirt
to get the button inserted when you wear the polo shirt.
Button Stitch Machine – button stitch machine stitches the
button on the polo shirt automatically. An operator needs to put the button
on the slot then press the pedal by the leg on hand button also now available, then button
sewing is done automatically.
If you add a button
feeder machine with a button stitch machine then production will be faster. Because
after installing it nobody needs to place the button n machine. It happens
automatically.
Bartack machine – bartack machine joins those places where
there is a chance to get the fabric unstitched. The Polo shirt placket is joined by
this machine. sometimes the logo is attached by this machine.
Interlock / Flatlock / Cover Stitch these are all interchangeable names. Flatlock is two types. Flatbed and Cylinderbed.
Cylinder Bed Rowedge Cutter Machine – Polo shirts bottom hemming
is done by this machine. whole polo shirts bottom stitching is done it also cuts
the remaining fabrics automatically.
Flatbed with piping – sometimes we can see neck join and
sleeve join there is extra ribbon type of fabric, that is stitched by this machine.
Four Thread Overlock machine – Two-needle four-thread Overlock
machine is used to join side seam. This machine gives safety stitch. So side
join will never loosen until you deliberately try it to lose.
Summary of the Layout.
140 pieces of the output of Polo Shirt per Hour.
|
1400 pieces of the output of Polo Shirt per 10 Hour in a day.
|
A total of 34 sets fully auto sewing machine is needed to get the required output.
|
Polo Shirt Front Part.
Polo Shirt Back Part.

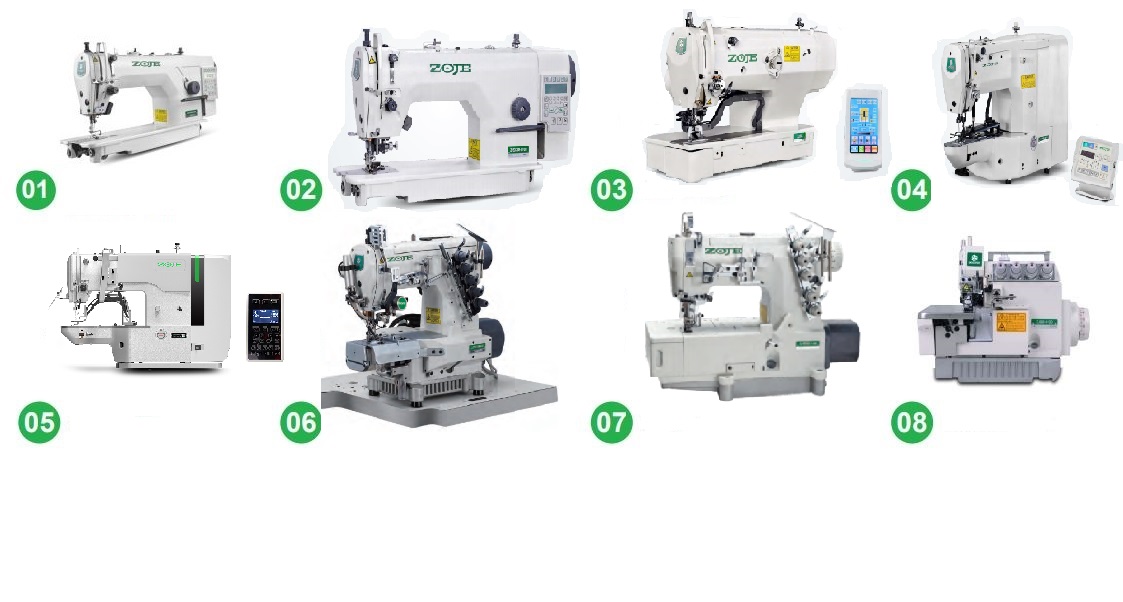

Images of Sewing Machine Used in making Polo Shirt.
